- Place of Origin: Shandong, China (Mainland)
- Brand Name: huashuoCNC
- Model Number: zQ3050*16-04

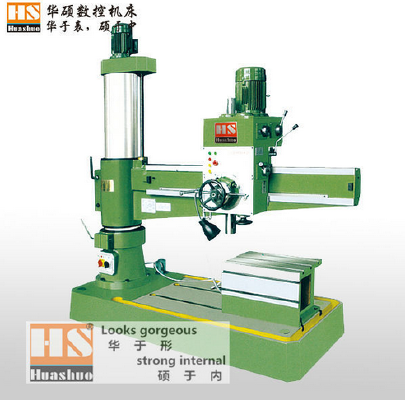

The hole diameter of 50mm radial drilling machine manufacturers selling excellent quality
Huashuo Product Spec
Maximum drilling diameter mm 50
Spindle nose to table distance mm 260-1150
Spindle center distance bus distance mm 360-1600
Optional spindle travel mm 220
Spindle taper (Morse) 5
Spindle speed range r.p.m 78.-. 1100
spindle speeds 6
Spindle Feed range r.p.m 0.04-3.2
Spindle feed rate series 6
Rocker rotation angle of 360
Main motor power kw 3
Lifting motor power kw 1.5
Machine weight kg 2360
Dimensions mm 250 × 1050× 2800
Note: Parameters for reference only, we can offer a variety of programs customized services for you, more Huashuo machine product features, configuration, features and other product information, please contact us advice, thank you.
- Place of Origin: Shandong, China (Mainland)
- Brand Name: huashuoCNC
- Model Number: zQ3050*16-04
| Condition: | New | CNC or Not: | Normal | Drilling Speed: | 78-1100r/mm |
| Place of Origin: | Shandong China (Mainland) | Brand Name: | HSHUASHUO | Model Number: | zQ3050*16-04 |
| Voltage: | 380v | Power(W): | 4000w | Dimension(L*W*H): | Length 2350mm width 1100mm high 2800mm |
| Weight: | 2360 | Certification: | iso9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
| Color: | Customizable | Stroke Specifications: | Customizable |
